DESCRIPTION

• Overview
• Product Description

Overview

Basic Info.

Model NO.	CuNi40
Surface Treatment	Polishing
Type	Ni-base corrosion resistant alloy
Width	50mm
State	Bright
operation	Annealed
thickness	0.2mm
Transport Package	Coil, Waterproof Paper, Pallet
Specification	thickness 0.05mm-3mm, Width 10mm-1000mm
Trademark	TANKII
Origin	China
HS Code	74082200
Production Capacity	30 Tons/Month

Packaging & Delivery

Package Size20.00cm * 20.00cm * 20.00cm Package Gross Weight5.000kg

Product Description

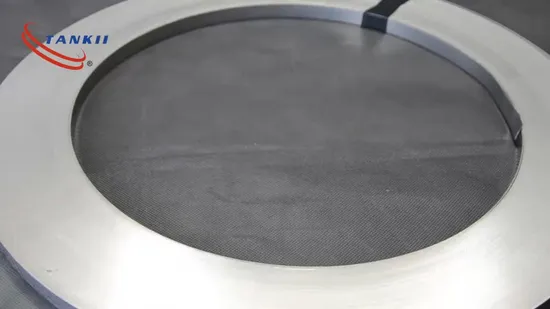

New Constantan Foil/ Cu-Ni Alloy 6j11 Foil
Constantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures.
Other grade of copper nickel alloy are as follows:

CN5, CuNi2

A60, Alloy 60, 60 Alloy, MWS-60, Lohm, HAI-60, CuNi 6, Alloy 260, Nickel Alloy 60, CN10

CuNi10, CN15

A30, Alloy 30, CuNi23, 30 Alloy, MWS-30, HAI-30, Alloy 230, Nickel Alloy 30, CN 30

CuNi1, CuNi15, CuNi30

Shanghai Tankii Alloy Material Co., Ltd. is the most professional producer of constantan, copper nickel alloys in wire, strip, foil, sheet and rod.

If there is any question or requirement, pls be free to contact with us.

Product Description

Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy
Properties\Grade		CuNi1	CuNi2	CuNi6	CuNi8	CuMn3	CuNi10
Main Chemical Composition	Ni	1	2	6	8	_	10
	Mn	_	_	_	_	3	_
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		200	200	200	250	200	250
Resisivity at 20oC (Ωmm2/m)		0.03	0.05	0.10	0.12	0.12	0.15
Density(g/cm3)		8.9	8.9	8.9	8.9	8.8	8.9
Thermal Conductivity(α×10-6/oC)		<100	<120	<60	<57	<38	<50
Tensile Strength(Mpa)		≥210	≥220	≥250	≥270	≥290	≥290
EMF vs Cu(μV/oC)(0~100oC)		-8	-12	-12	-22	_	-25
Approximate Melting Point( oC)		1085	1090	1095	1097	1050	1100
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non
Properties\Grade		CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNi44
Main Chemical Composition	Ni	14	19	23	30	34	44
	Mn	0.3	0.5	0.5	1.0	1.0	1.0
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		300	300	300	350	350	400
Resisivity at 20oC (Ωmm2/m)		0.20	0.25	0.30	0.35	0.40	0.49
Density(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.9
Thermal Conductivity(α×10-6/oC)		<30	<25	<16	<10	<0	<-6
Tensile Strength(Mpa)		≥310	≥340	≥350	≥400	≥400	≥420
EMF vs Cu(μV/oC)(0~100oC)		-28	-32	-34	-37	-39	-43
Approximate Melting Point( oC)		1115	1135	1150	1170	1180	1280
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non
